Client
US Storage Center
Location
310 Rock Springs Drive, Las Vegas, NV 89145
Timeline
Exterior signage package including three large channel letter sets, door vinyls, and an interior illuminated logo.
BlinkSigns collaborated with US Storage Center to enhance the visual identity and visibility of their facility located at 310 Rock Springs Drive, Las Vegas, NV. The project required a comprehensive storage facility signage overhaul that would align with corporate branding, comply with local codes, and create a consistent, illuminated presence across multiple elevations and entrances.

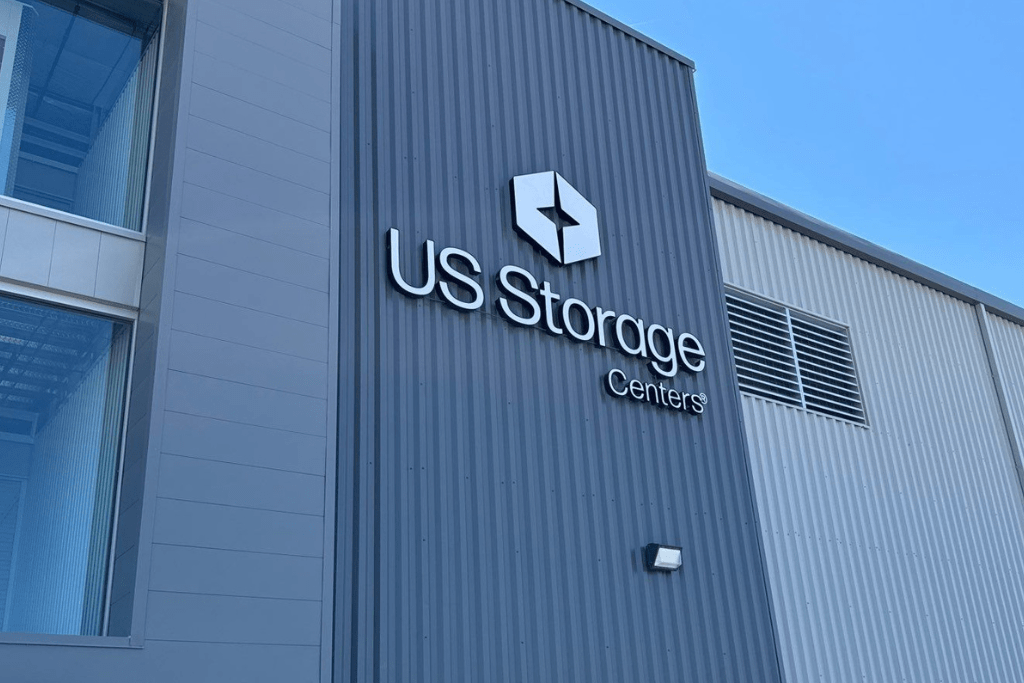

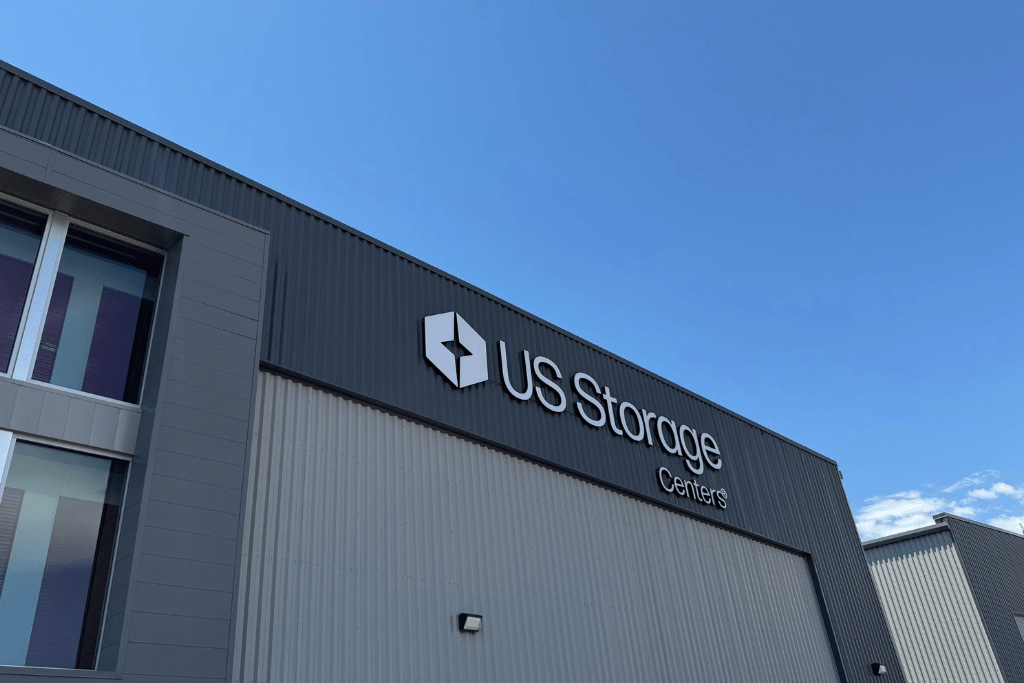

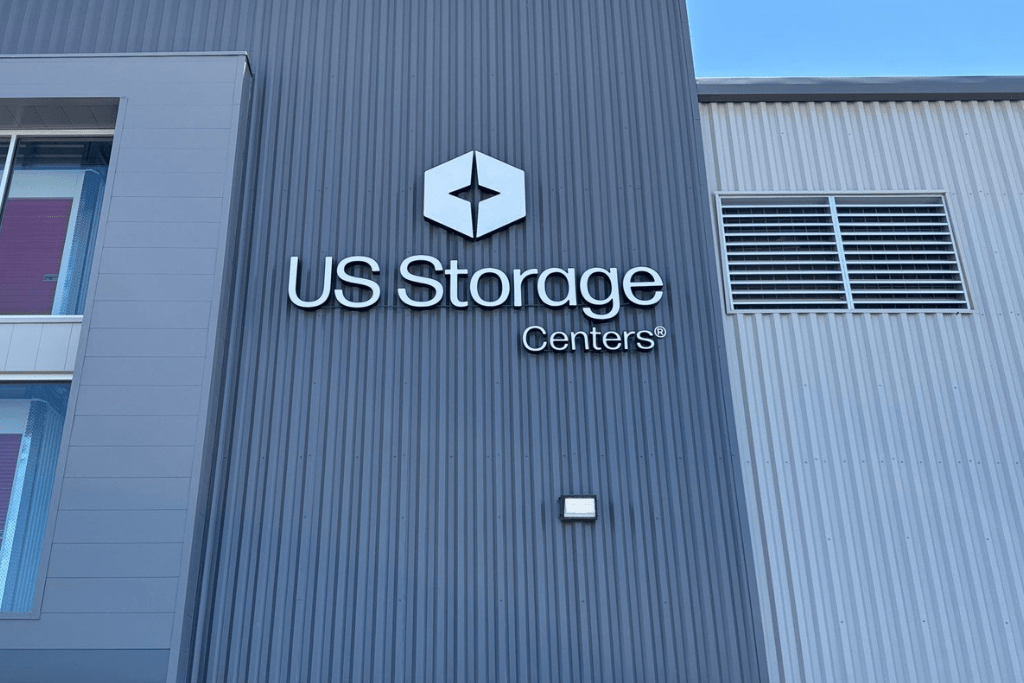

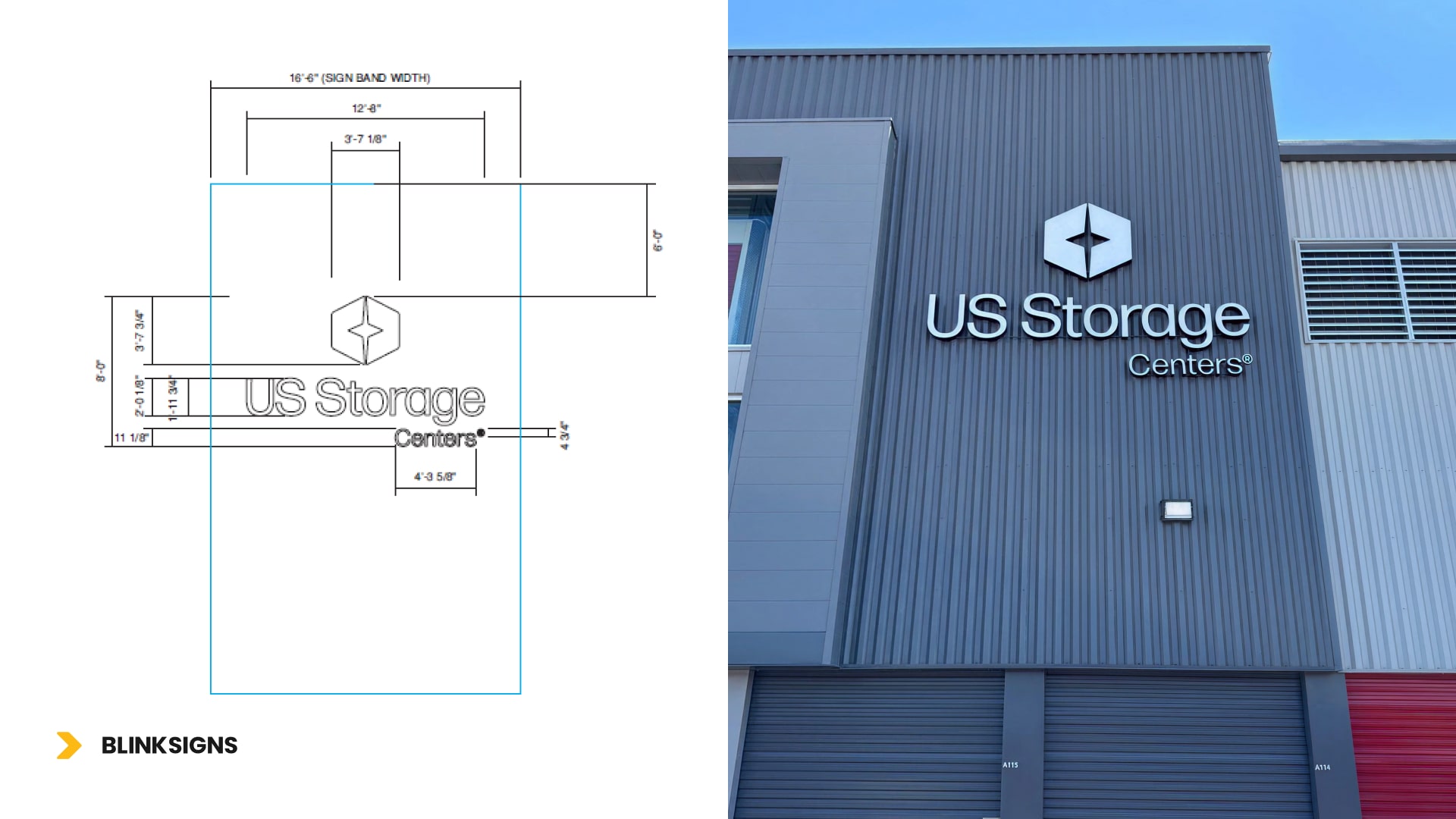

Front-Lit Channel Letters-Sign 1
The US Storage logo was fabricated with 3" black returns, a 1" black trim cap, and 3/16" Optix 7328LD white acrylic, illuminated with GE LEDs. It was flush mounted with a remote power supply. The centers used the same materials and GE LEDs, also flush mounted with remote power. The ® symbol was created from opaque white vinyl applied to 1/4" acrylic for a consistent finish.

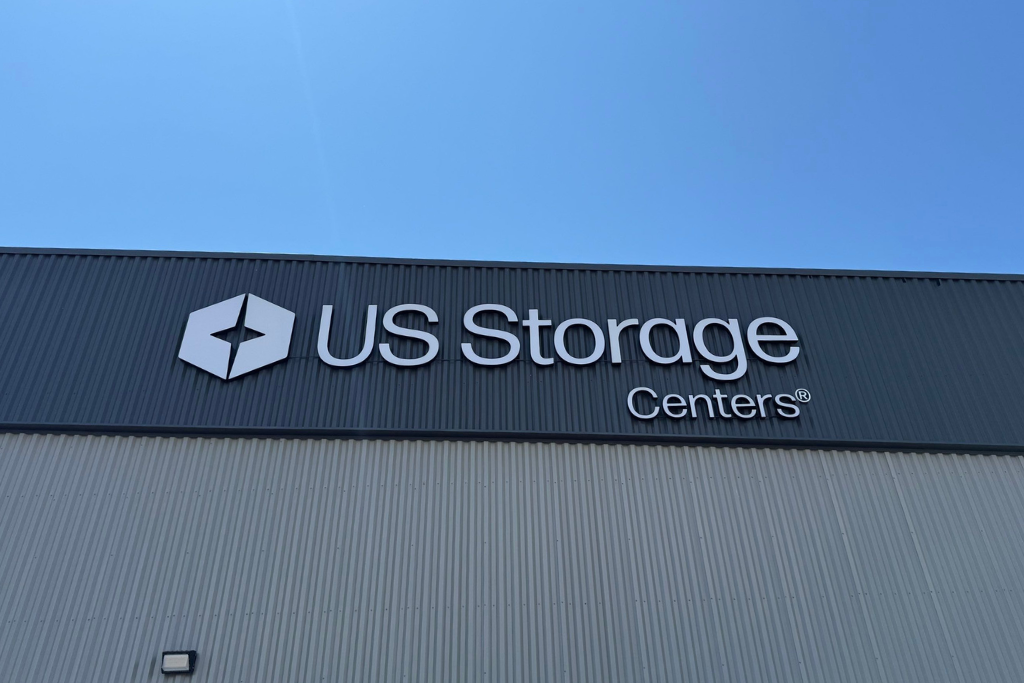

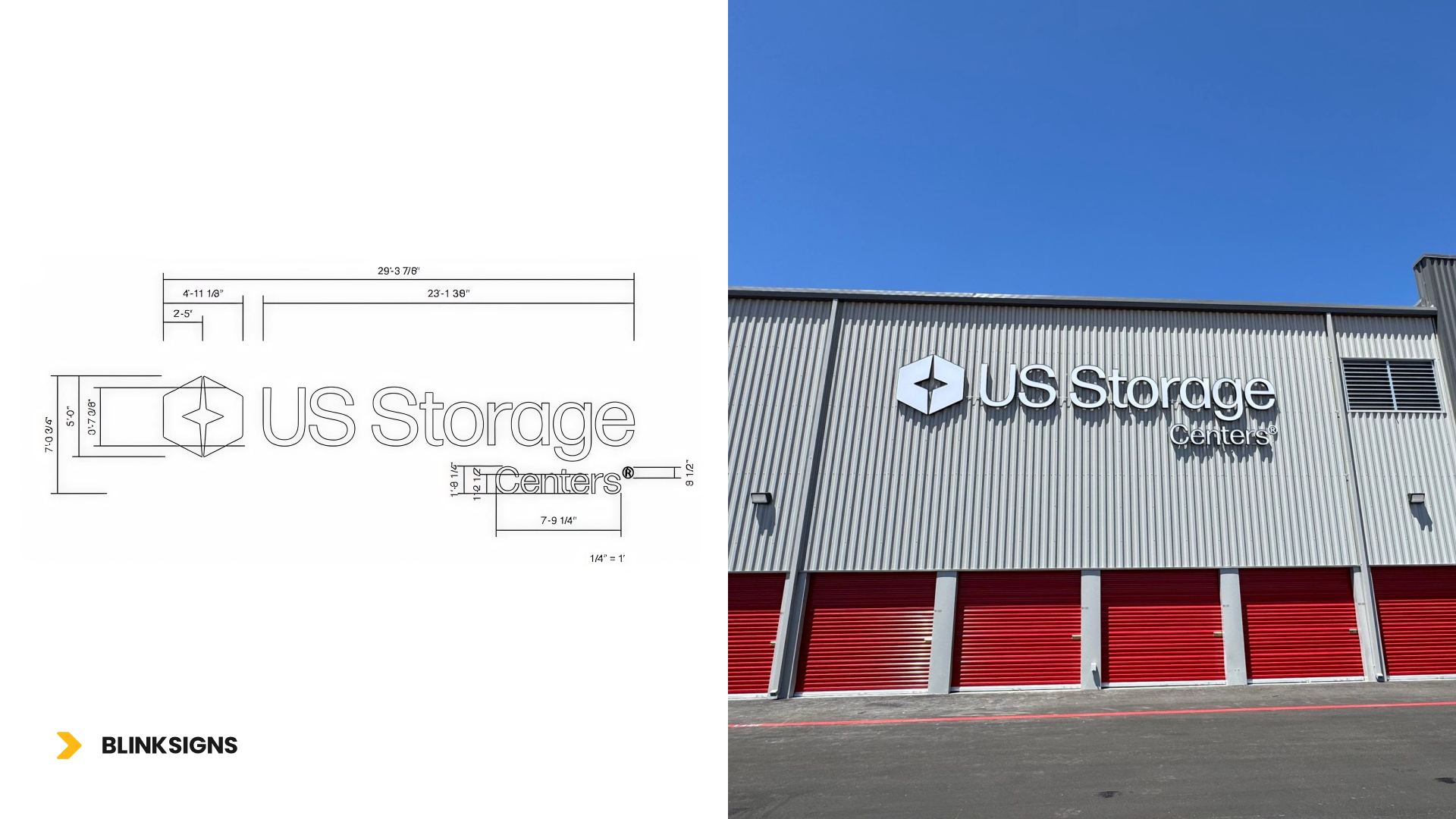

Front-Lit Channel Letters-Sign 2
The signage includes 3" black returns, a 1" black trim cap, and 7328LD white acrylic. Front lighting is provided by White GE LEDs—for 24–36 letters and GELTM2465-1 for 48–60 letters—mounted flush with a remote power supply. Centers use the same construction with LEDs. A 1/4” acrylic circle is finished with opaque white vinyl applied first surface and painted for a polished look.

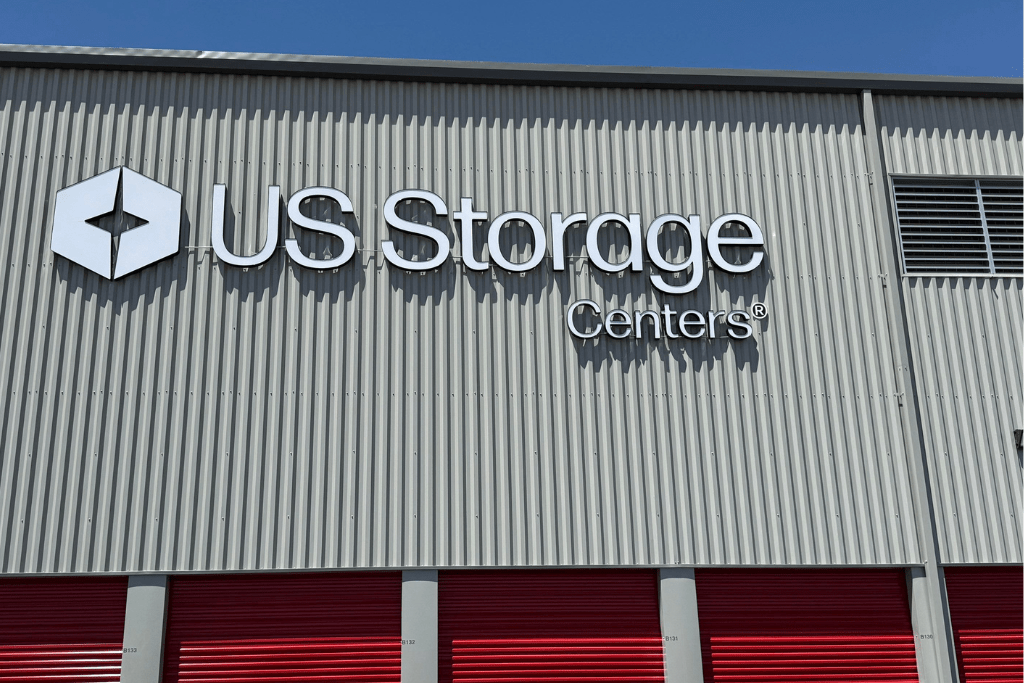

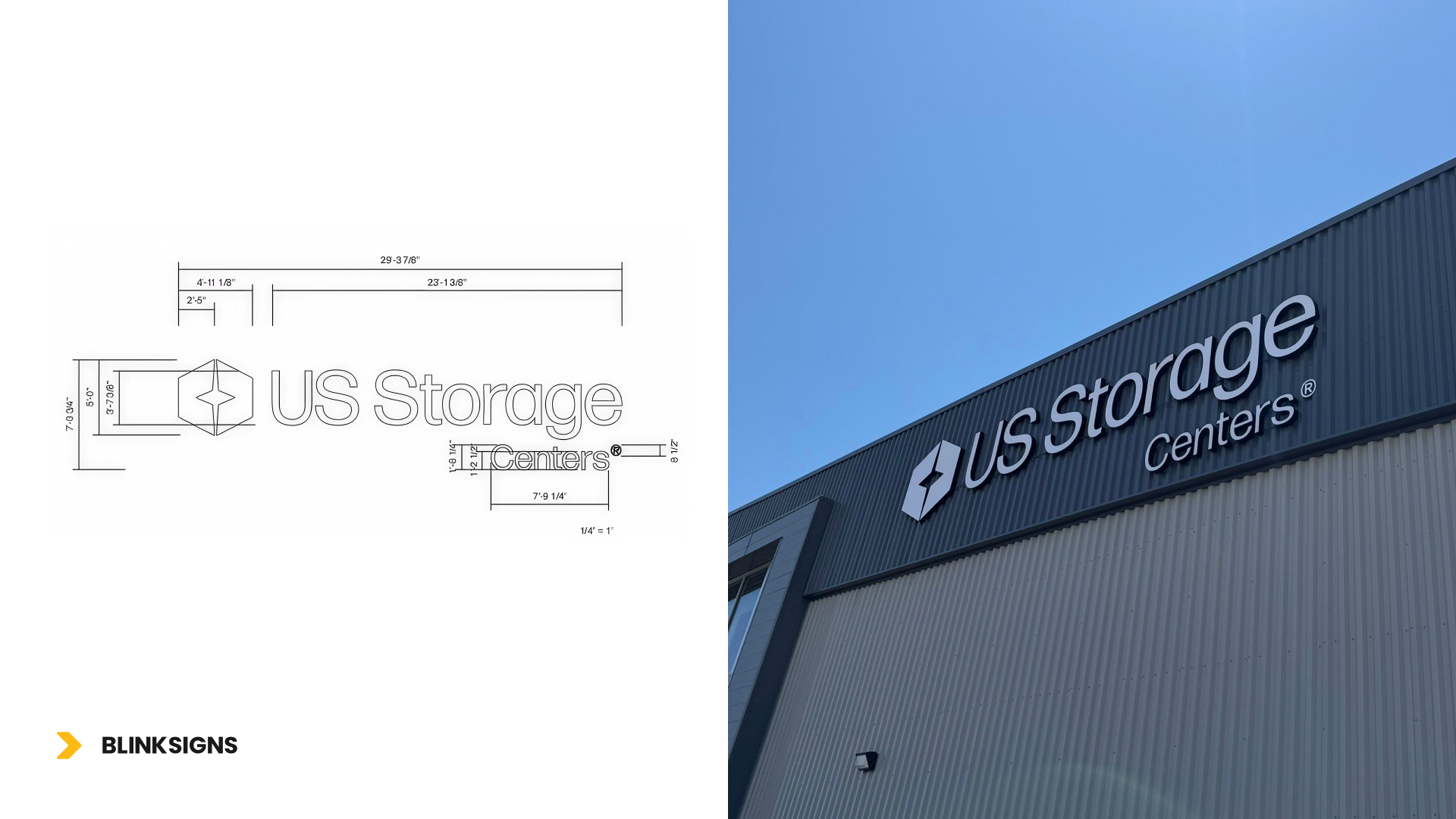

Front-Lit Channel Letters-Sign 3
The signage features black returns, a black trim cap, and Optix 7328LD white acrylic. Front lighting is provided by White mounted flush with a remote power supply. Centers use the same construction with GELTS2465-1 LEDs, while a 1/4” acrylic circle is finished with opaque white vinyl applied first surface and painted to match.

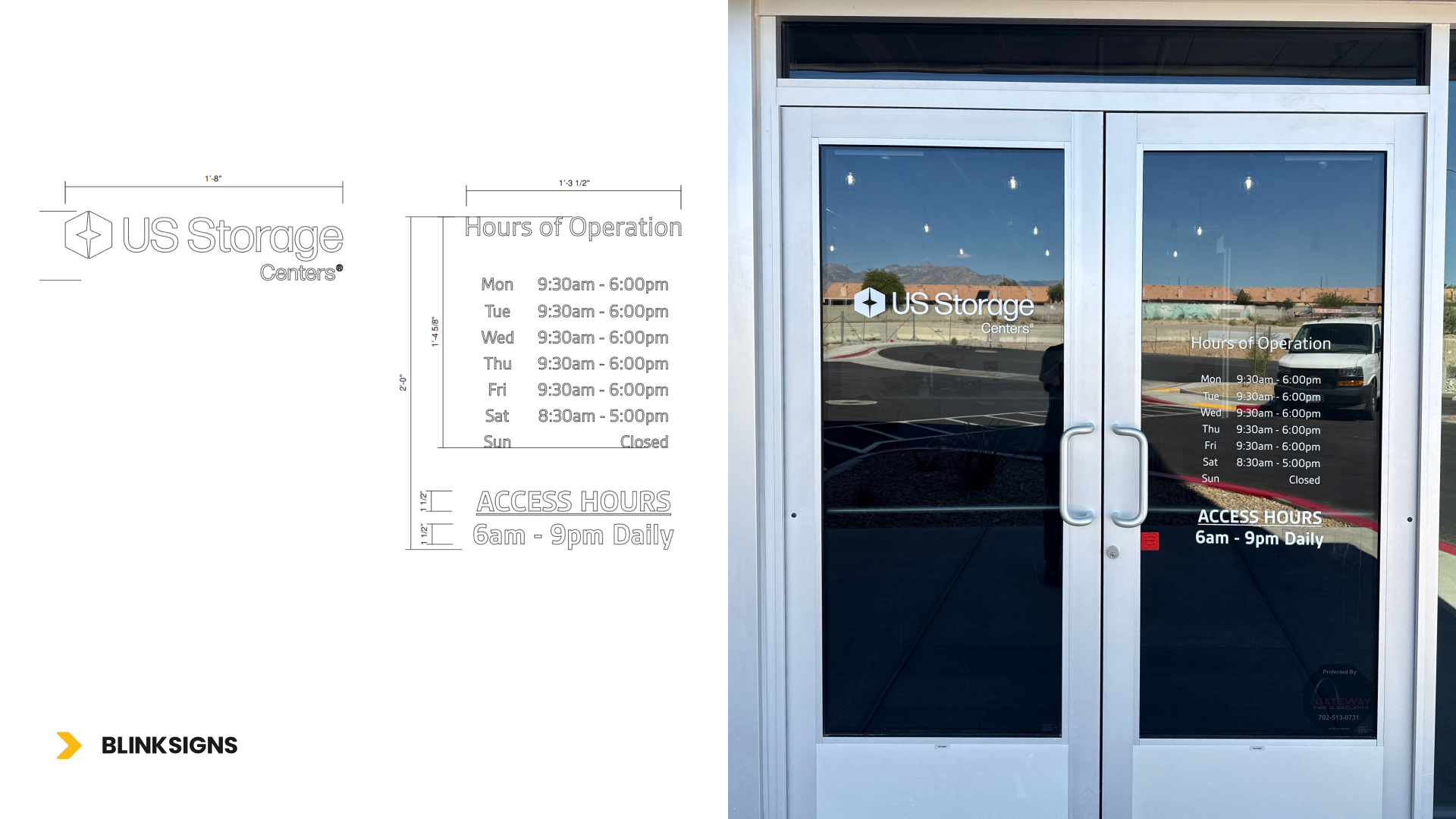

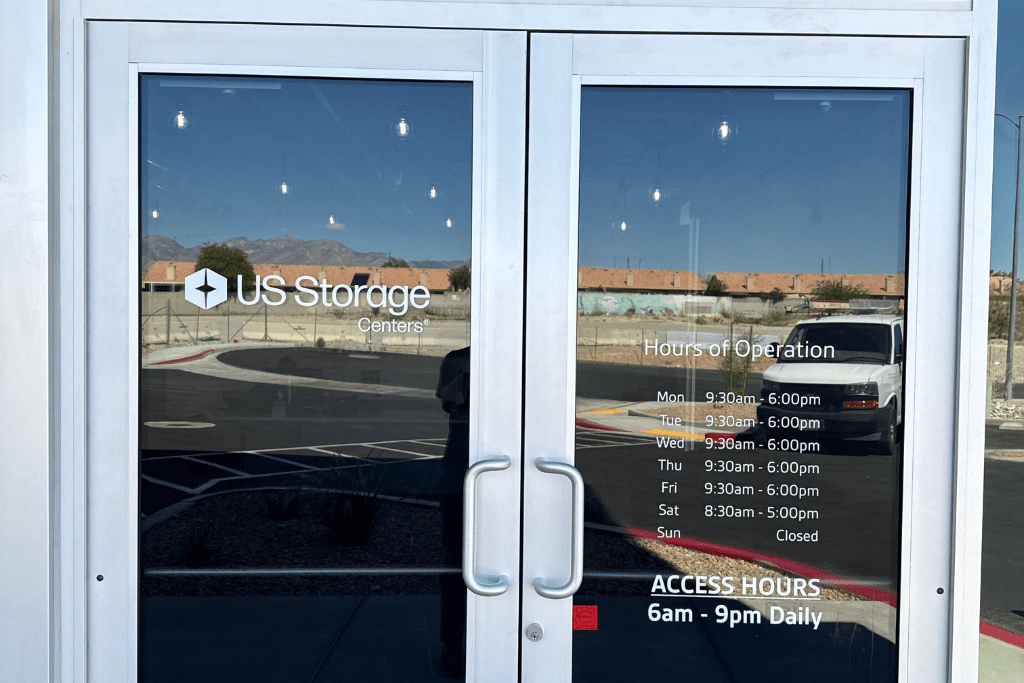

Door Vinyl Graphics
Opaque white computer-cut vinyl was applied to the first surface of the exterior entrance glass, providing a clean and professional look. The design includes operating hours and access information to ensure clarity and convenience for visitors. The font was used to maintain a modern and consistent aesthetic. This vinyl installation replaced the previous signage to uphold visual consistency across the brand.
Interior Embedded Led Logo
The sign was constructed from 2" thick acrylic embedded with LEDs to provide both front and halo lighting. For branding accuracy, translucent US Storage Blue 3M vinyl was applied, while painted elements were matched precisely to Pantone 2935 C. The installation was pin-mounted with 1.5" standoffs for placement on an interior wall, ensuring depth and visibility. Additionally, the registered trademark element was fabricated using non-glare acrylic and matching vinyl to maintain consistency and professionalism.
Calculations ensured each sign’s square footage was within permissible range per elevation.
Created revised renderings with/without raceways, adjusted layout for spacing, and finalized details like flush mounting for sleek appearance.
High-brightness GE LED modules provided consistent illumination for all signs, with night views reviewed in design.
Bold, illuminated letters across three elevations created a strong, professional presence.
Clear directional and business information on door vinyls helped guide visitors effectively.
he embedded LED logo added a polished, on-brand finish to the lobby area.
